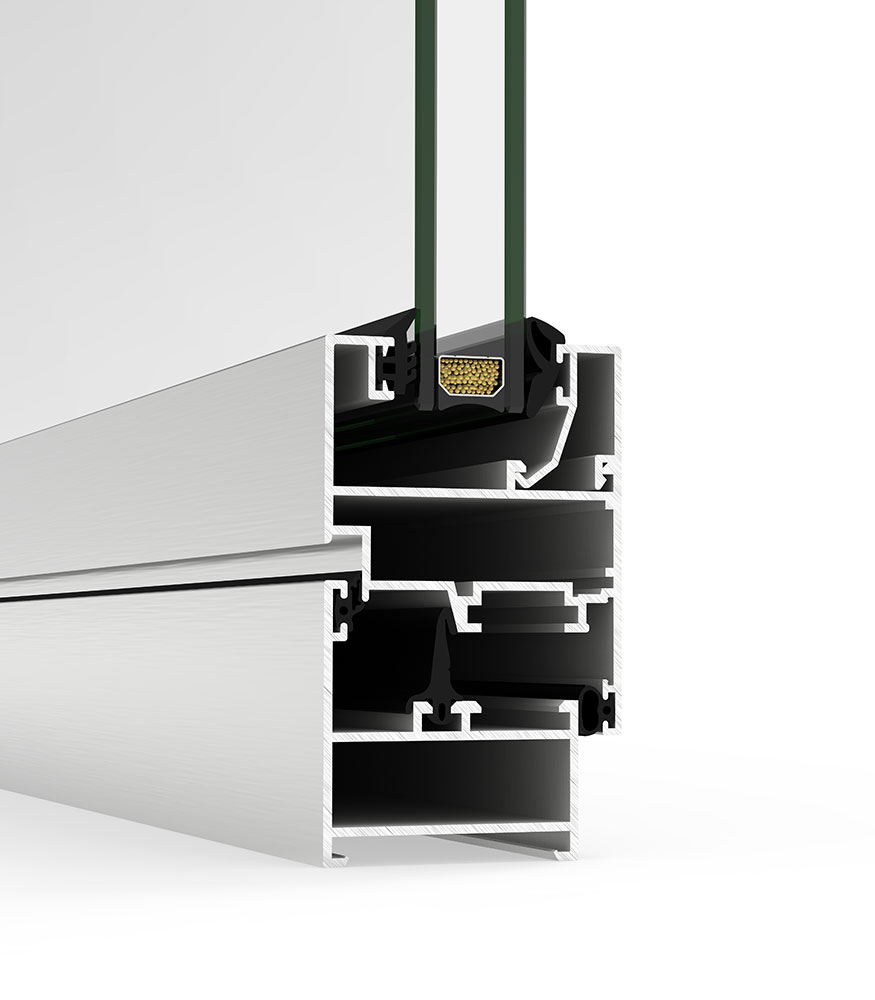

COR 2000
Euro-groove hinged system with a glazing capacity of 31 mm.Its profile thickness, of 1.5 mm in the window version and 1.7 mm in the door version, provides it with exceptional rigidity and durability.
Possibilities
» Security hardware
» Concealed hinges
» Glazing
Max. 31 mm
Min. 3 mm
» Opening possibilities
Inward opening
Side hung
Tilt & turn
Bi-fold
Tilt & parallel
Bottom hung
Outward opening
Side hung
Top hung
Pivoting of either horizontal or vertical axis

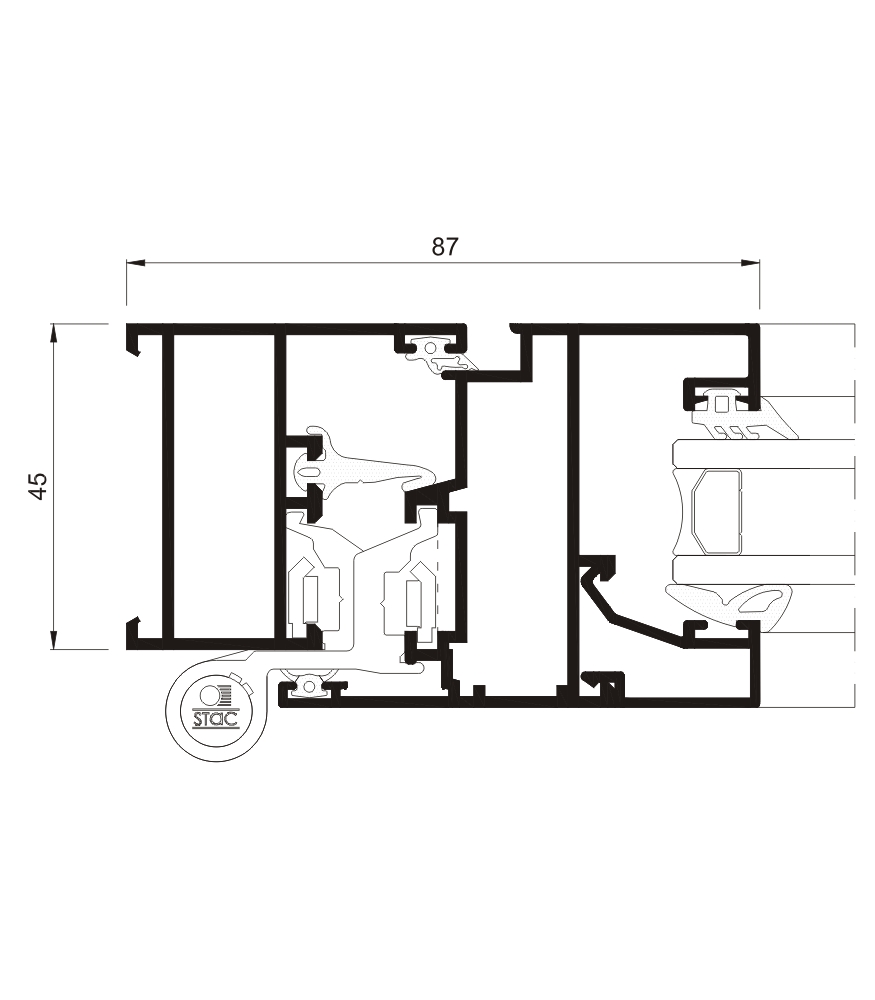

» Sightlines
Frame 45 mm
Sash 53 mm
» Profile thickness
Window 1.5 mm
Door 1.7 mm
» Maximum sash dimensions
Width (L) 1,500 mm
Height (H) 2,400 mm
» Maximum sash weight
120 kg
» Aesthetic possibilities
Sash: Straight or curved / Bead: Straight or curve
Consult maximum weight and dimensions according to typologies.
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
» Transmittance
Uw ≥ 1.8 (W/m2K)
Consult maximum weight and dimensions according to typologies
» Acoustic insulation
Rw up to 39 dB
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class 9A
» Wind resistance
(EN 12210) Class C5
Reference test 1.20 x 1.18 m / 2 sashes
